The inner barrel![]()

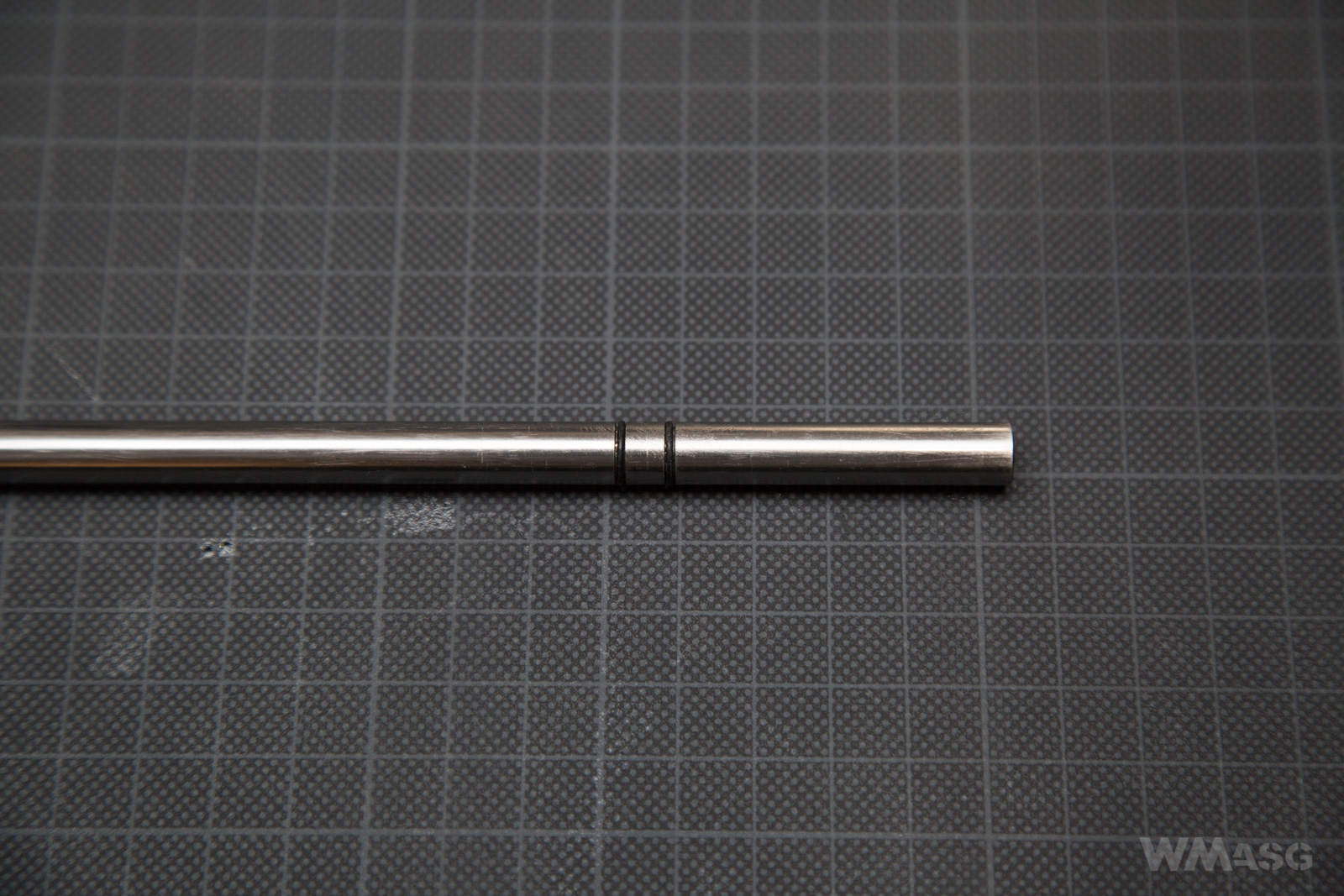

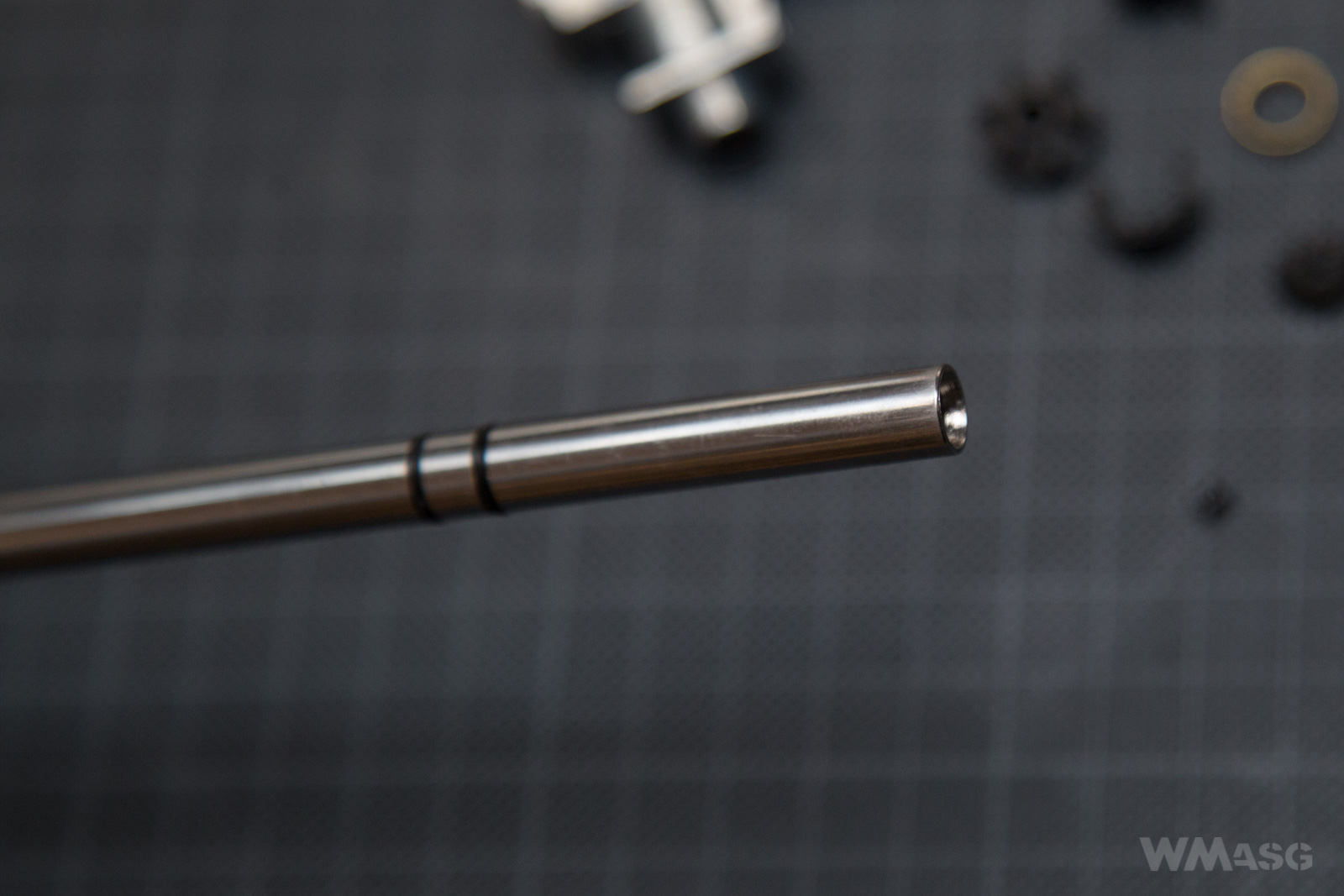

The inner barrel is 440 mm long and chromed. The inner diameter of the barrel is 6.03 mm. At the exit of the barrel there are two rolled grooves, on which the rubber stabilizing o-rings were factory-fitted.
The exiting end is beveled.

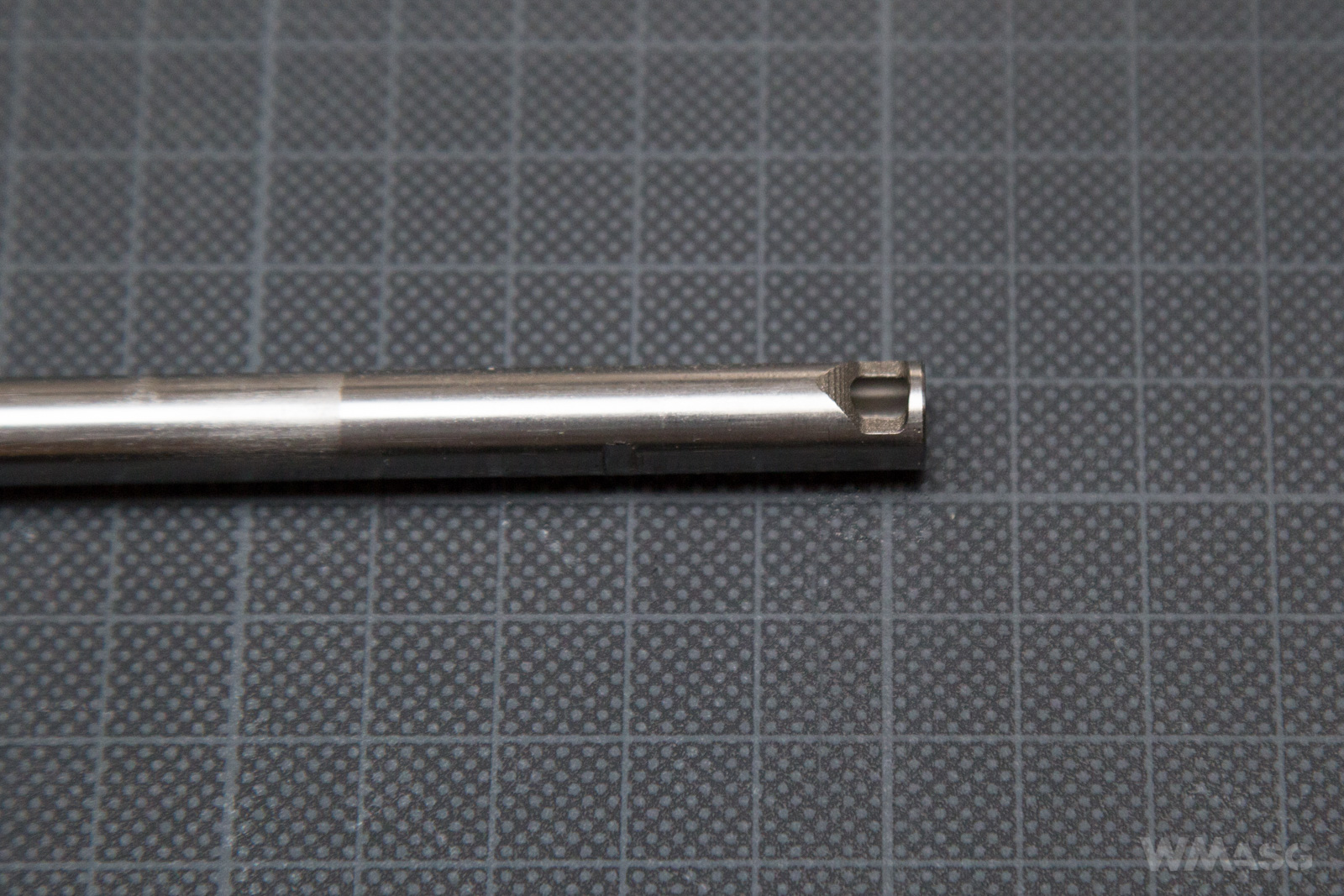

The Hop-Up port is cut in a characteristic way.

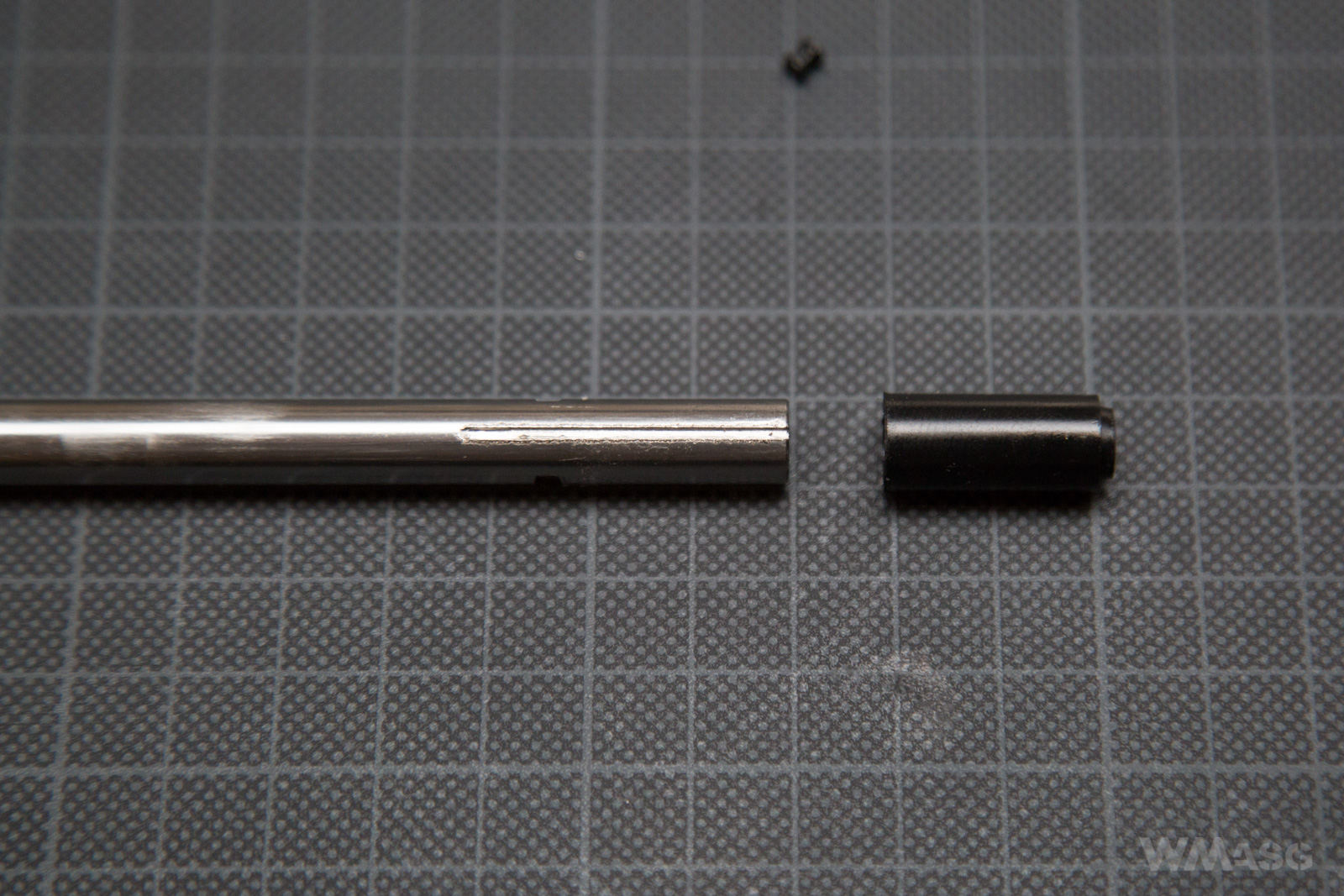

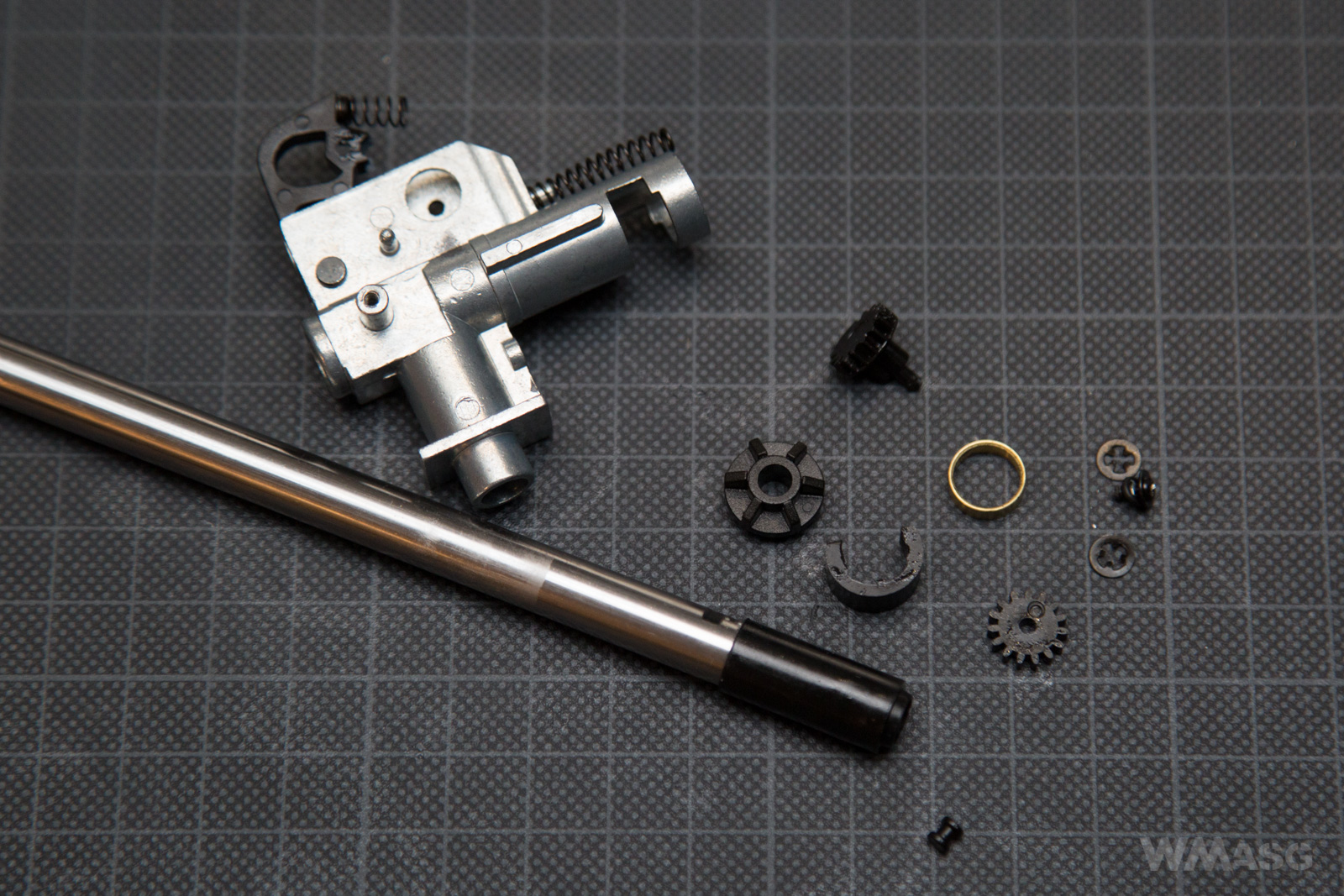

The chamber and the Hop-Up bucking

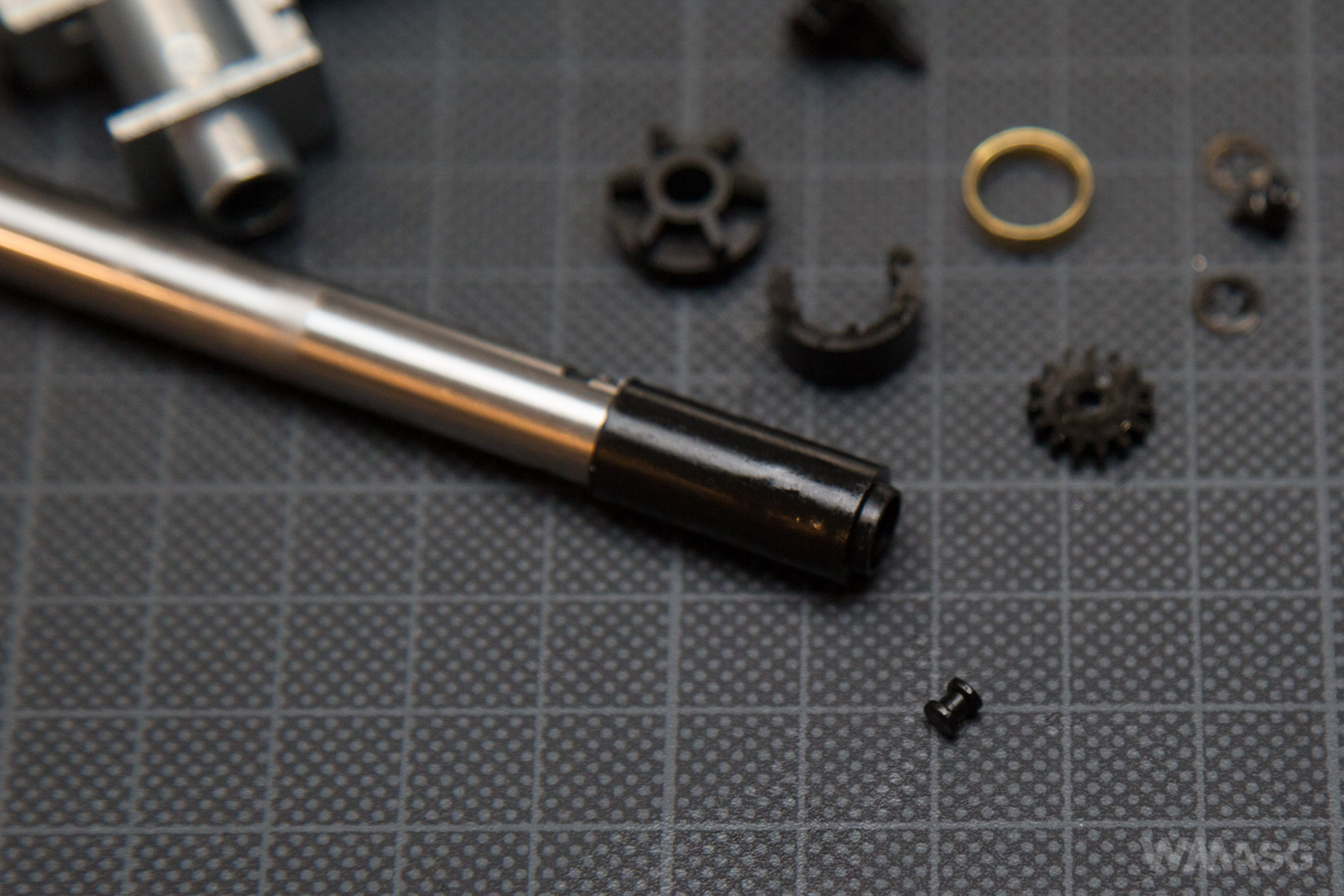

The chamber is made in a traditional shape, cast in aluminum alloy.
The bucking is black and soft. I could not determine from what material it was made.
The H type spacer.
The magazine

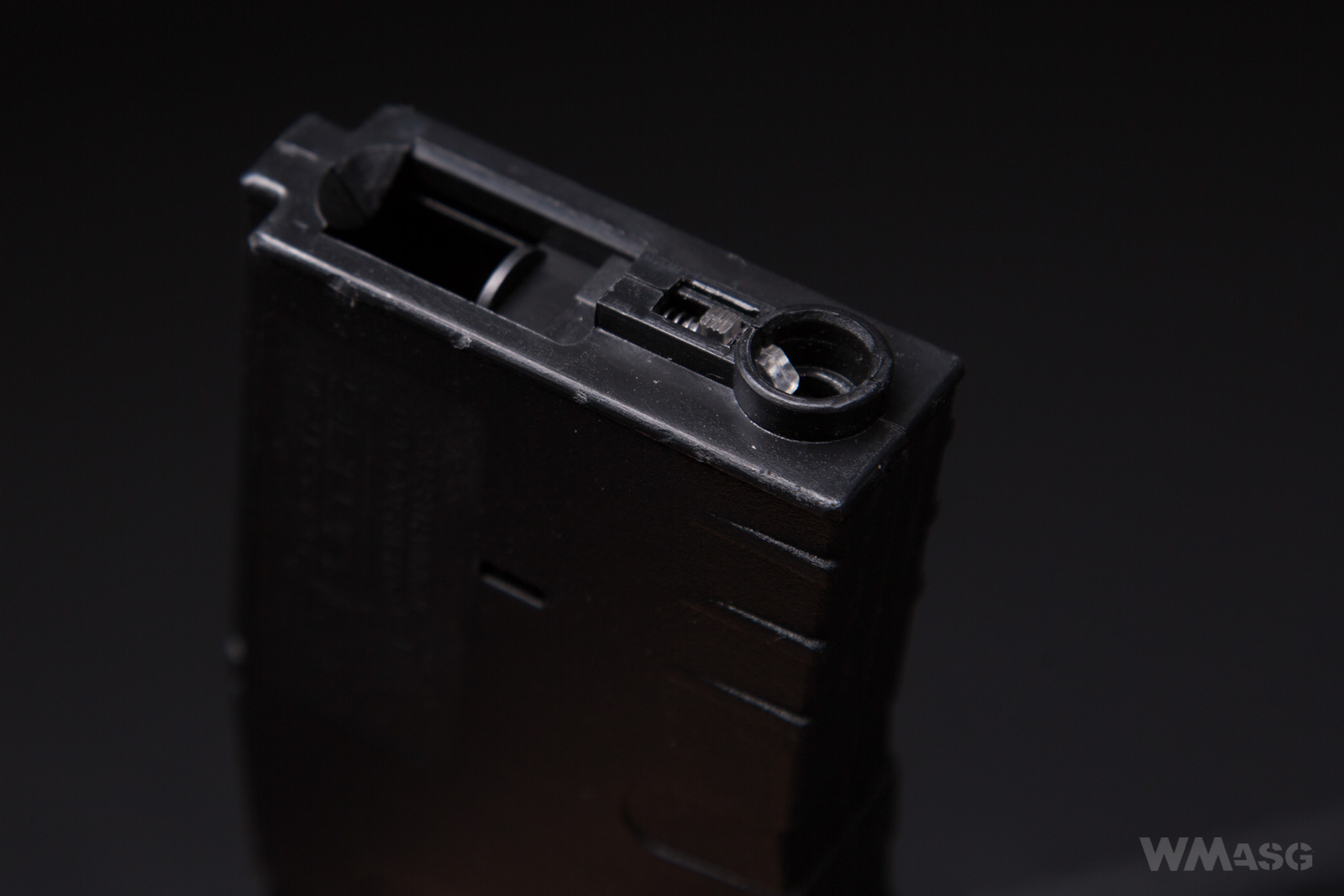

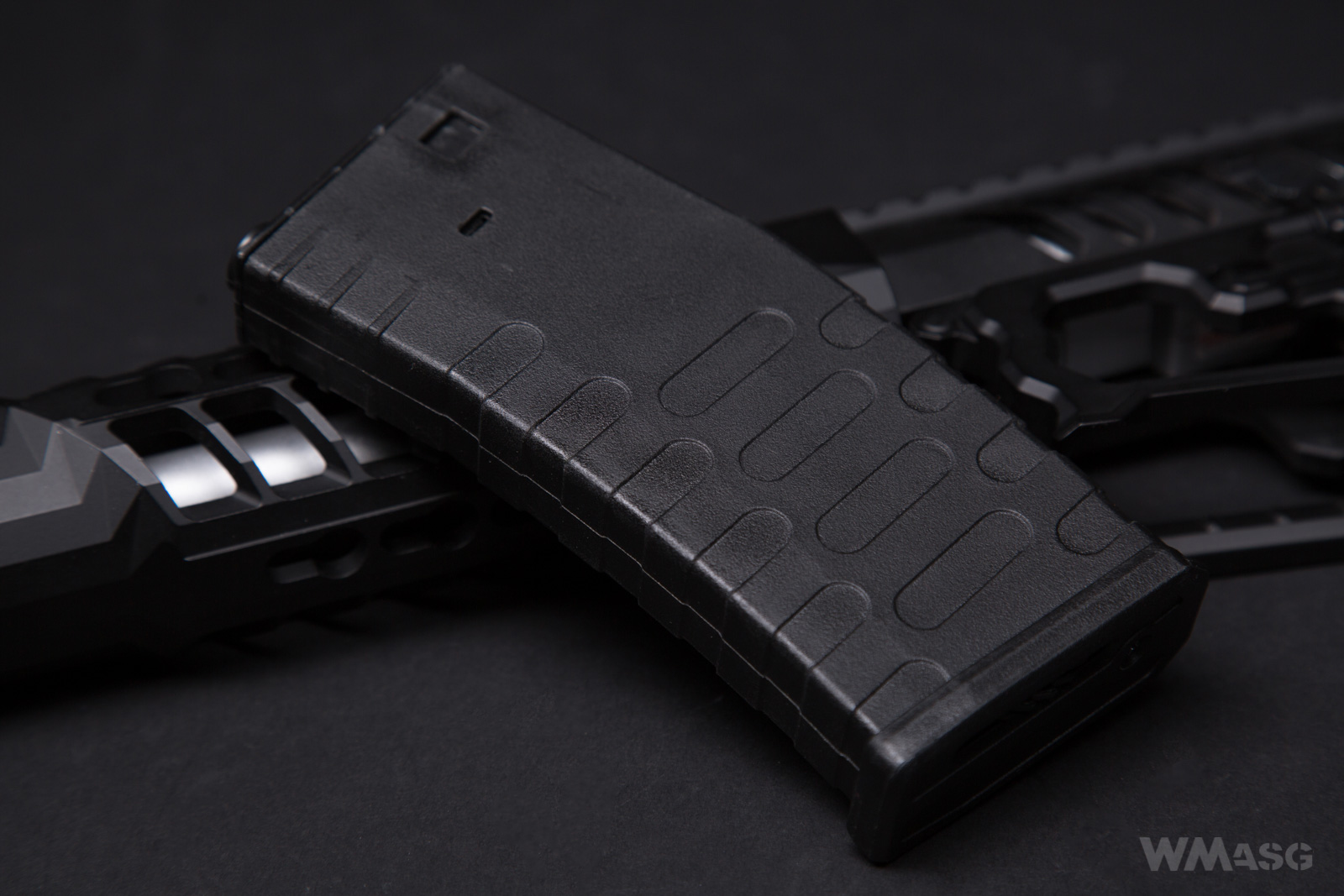

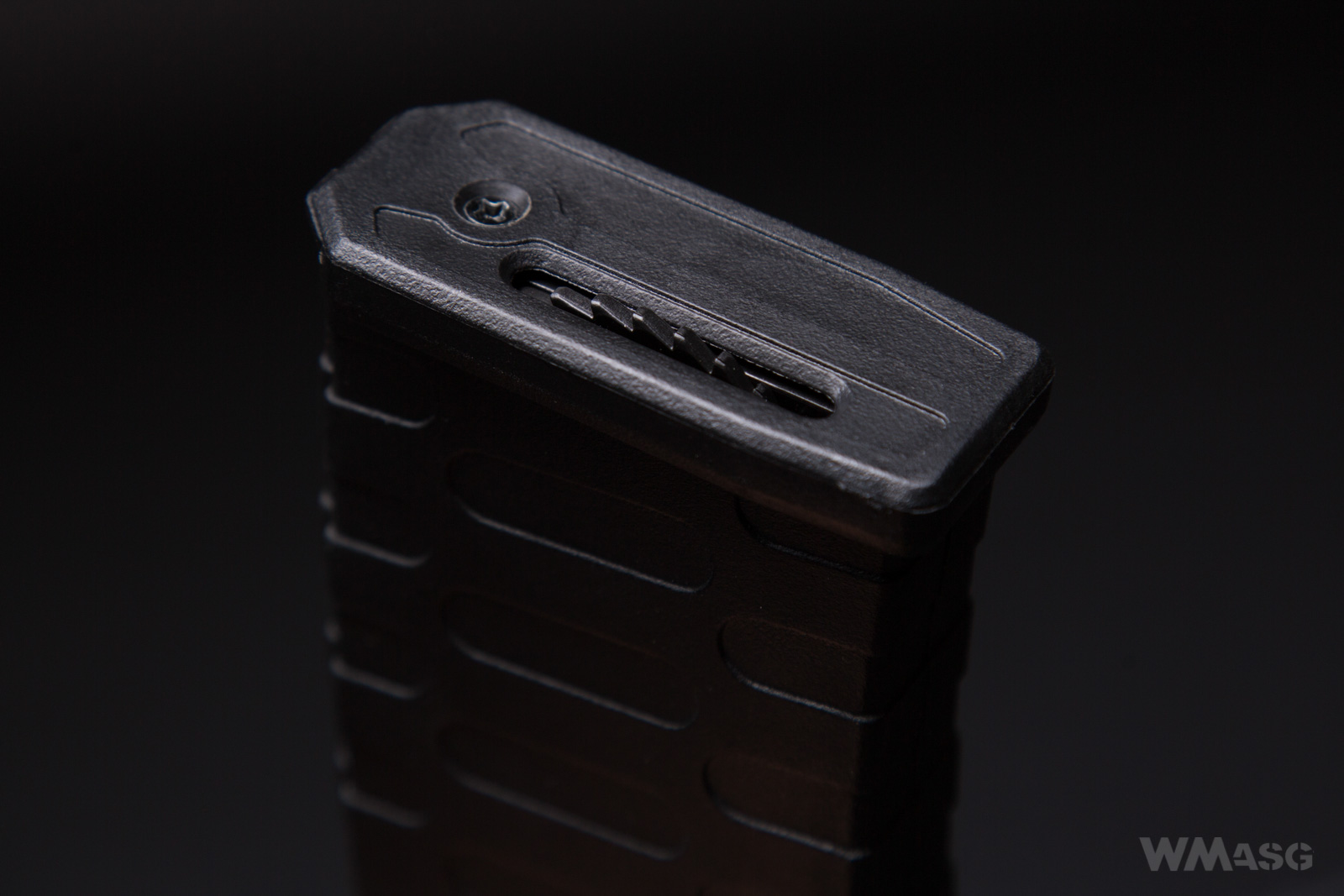

Included with the replica we get a polymer Hi-Cap magazine holding 300 BBs, traditionally wound up with a wheel placed at the bottom.

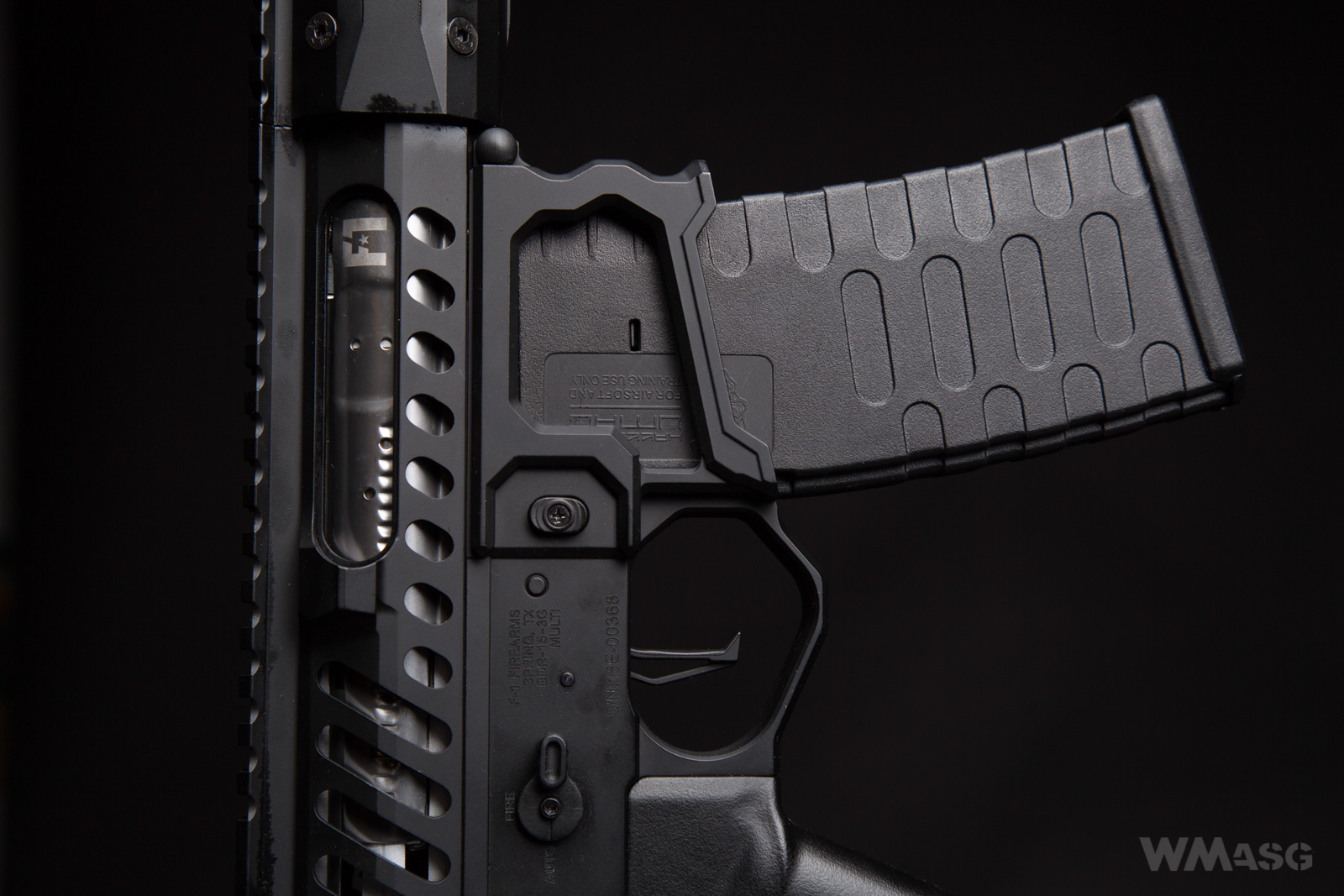

Magazine called U Mag stylistically refers to Magpula's products.

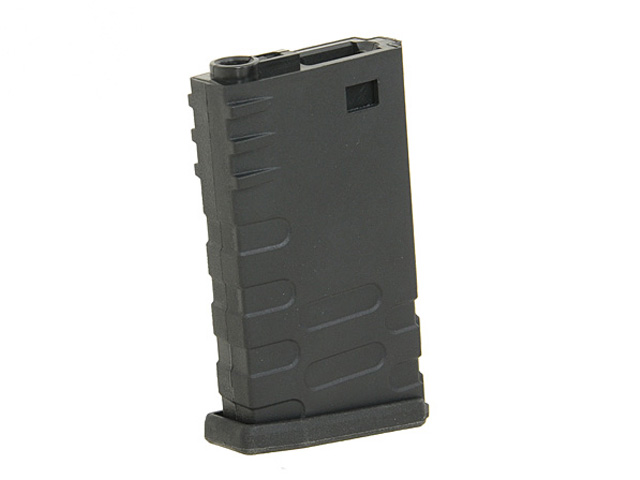

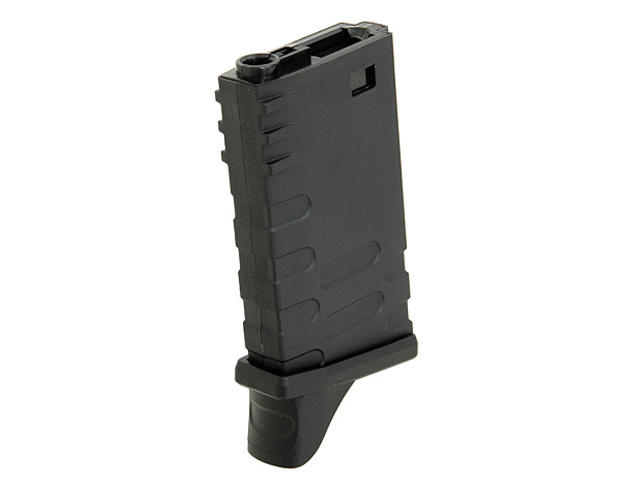

In the manufacturer's offer and at Taiwangun.com store there is also a shorter version available, holding 150 BBs, sold with a detachable magpul (source: www.taiwangun.com)
During our tests the magazine was feeding correctly, without "empty" shots.
Next page: muzzle velocity test, target shooting test and summary.
