New SIG SAUER sight
New SIG SAUER sight

New SIG SAUER sight

New SIG SAUER sight
New SIG SAUER sight

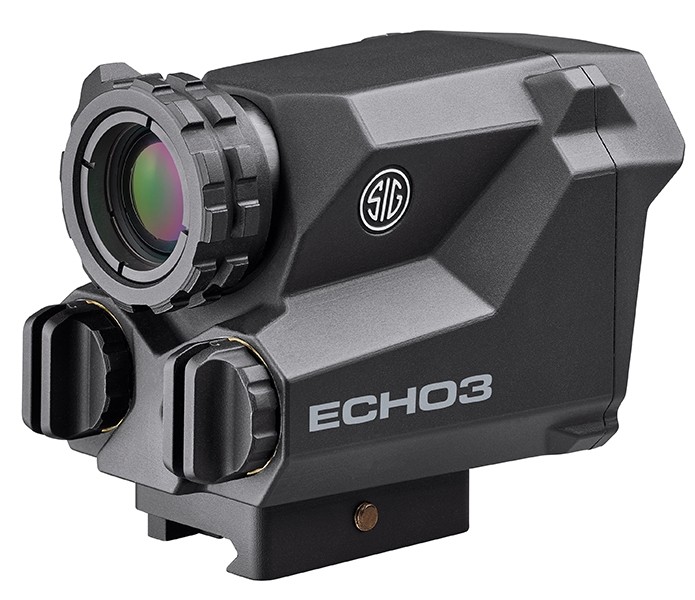

ECHO3 is a thermal imaging sight using the SIG SAUER BDX (Ballistic Data eXchange - a data exchange system via bluetooth between paired SIG's sights), with the ability to capture images and record video in eight different color palettes.






The sight is available with 1-6x or 2-12x magnification, can be used with 9 different built-in SmartBDC™ ballistic reticles or can be paired with any KILOBDX rangefinder (manufactured by SIG). In addition, the new product features the MOTAC™ motion activated display that turns on when it detects motion, provides continuous operation for over 6 hours and offers video and image recording in eight color palettes and six brightness settings. The ECHO 3 is equipped with a QD mount and easy to adjust lens with a so-called throw lever.




Poniżej wybrane dane ze specyfikacji ECHO 3:


• Sensor: Uncooled 320x240 12um VOx LWIR Core Operating at 30Hz (ITAR Controlled)
• Magnification: 1-6x or 2-12x
• Adjustment: every 0.5 MOA
• Lens diameter: 23 mm (1-6) / 40 mm (2-12)
• Brightness: 6 levels
• Color pallets: Red, Red Hot, Black Hot, White Hot, Edge, Tyrian, Iron and Fire
• Overall length: 10.4 cm (1-6) / 11.9 cm (2-12)
• Overall width: 6.6 cm
• Overall height: 7.8 cm (1-6) / 9.1 cm (2-12)
• Weight: 411 g  (1-6) / 470 g  (2-12)
• Waterproof rating: IPX6
• Battery operational time: Over 6 hours of intensive use with two CR123 lithium batteries
• Total reticle adjustment range: 150 MOA x 150 MOA
• Assembled in the USA

MSRP (1-6x): 3 899.99 USD

MSRP (2-12x): 5 199.99 USD

ECHO 3 is to become available in spring 2020.


Sources: sigsauer.com, soldiersystems.net
